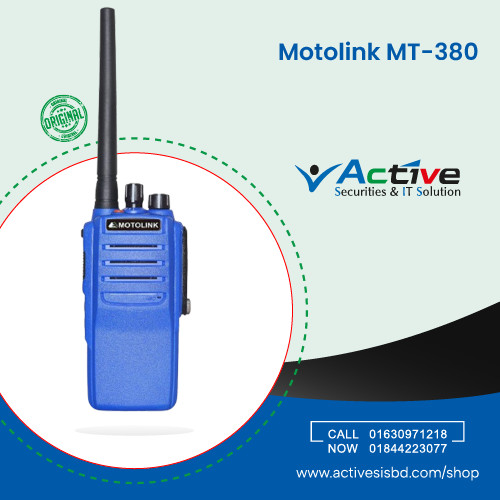

- Motolink MT-380
- ৳ 18500
- Call Us Now 01630971218
MT-380, Long Range 1W Handheld Two Way Radio, is long talk range analog radio.
Its robust body and rich features both serve to make it an ideal choice for security workers, construction sites and many more fields of work.
Quick Details:
- Frequency Range: 245-246MHZ
- 16 Memory Channels
- Beep Setting
- Reverse Frequency
- Scan
- Output Power: 1W
- VOX Function
- CTCSS/DCS
- Chinese and English Voice Prompt
- Power Saving Function, Low Power Warning
- High/Low Power Selective 1W
- Wide/Narrow Bandwidth 12.5KHZ/25KHZ
- Emergency Alarm
- Busy Channel Lock
- Transmitter Time-out Timer(TOT)
- Side Key Assignment
- ANI and DTMF Function
- 2-tone
- Remote Kill , Stun, Activate & Revive
- FM radio (87-108MHZ)
- High Li-ion Battery Capacity:1500Mah
Specification:
|
Frequency Range |
245-246MHZ |
|
Operating Temperature |
-20℃to +55℃ |
|
Frequency Combination |
please lock frequency synthesize |
|
Frequency Stability |
±2.5ppm |
|
Memory Channel |
16 |
|
Working voltage |
7.4v |
|
Antenna Impedance |
50Ω |
|
Operating Mode |
different-frequency simplex or same-frequency simplex |
|
Dimensions |
115*55*30mm |
|
Weight |
200g |
TRANSMIT PART:
|
Output power |
1w |
|
Modulate Mode |
F3E |
|
Max.Freq.Deviation |
≤5KHz |
|
Remain Wave Radiation |
＜-60dB |
|
Transmitting Current |
≤1000mA |
RECEIVER PART:
| Sensitivity |
＜0.20uV (12dB SINAD) |
|
Squelch Sensitivity |
＜0.20uV |
|
Intermodulation interference |
50dB |
|
Audio Power output |
500mW |
|
Receiving Current |
≤100mA |
|
Squelch Standby |
20mA |
